How do you install canless LED recessed lights in drywall, drop ceilings, and sloped ceilings without bulky housings?

You cut a precise hole using the included template, connect the integrated junction box to your 120V wiring via push-in connectors, and secure the ultra-thin fixture with spring-loaded clips. The entire process requires no attic access, no separate housing, and only a 1.5-inch clearance — making it ideal for nearly any ceiling construction.

How Canless LED Wafer Lights with Junction Box Simplify Installation

The core innovation behind modern canless LED wafer lights with junction box is the consolidation of three ordinarily separate components — the housing, the junction box, and the driver — into a single wafer-thin unit. Instead of wrestling a bulky can into a joist bay and then wiring a separate junction box, installers simply connect the fixture’s built‑in box directly to the branch circuit. This all‑in‑one design complies with NEC 410.10(C) for through‑branch wiring and eradicates the pain of fishing wires through small ceiling openings.

The deep, spring‑loaded retention arms only require a clean cutout in the ceiling material. When you push the light into the opening, the arms fold upward, then snap back to clamp the fixture flush against the drywall, acoustic tile, or ceiling panel. The same principle works regardless of the substrate, which is why these lights transition effortlessly between new construction, residential remodels, and commercial retrofits. For IC‑rated, airtight products like the ZEEZ series, you can bury them under insulation without fire risk, meeting energy codes while eliminating visible trims.

Slim Panel Canless LED Downlights: Ideal for Drywall, Drop, and Sloped Ceilings

Slim panel canless LED downlights solve the depth challenge that has historically ruled most ceilings out of recessed lighting. Standard can housings demand 5–6 inches of vertical clearance above the ceiling line — impossible in many furr‑downs, soffits, and modern engineered trusses. At only 1.5 inches thick, these ultra‑slim units slide into the tightest plenum spaces, leaving room for ductwork, pipes, and insulation.

When planning a drywall ceiling, the process is as simple as tracing the template, cutting with a drywall saw, and wiring the junction box through the hole. For drop ceilings, you can either cut the individual tile or mount the fixture in an existing grid panel — the spring clips grip the tile edge securely without sagging. On sloped ceilings, the fixture’s thin profile lets it sit flush against the angled plane, and the spring tension holds it perfectly in place even at fairly steep pitches. Although these are fixed downlights (not gimbal‑adjustable), the 5‑CCT selectable control compensates: choose 2700K to add warmth up a low, sloping vault; switch to 5000K for bright, uniform daylight‑like output in a high commercial ceiling.

As the industry has embraced 5/6 inch color selectable canless downlights, ZEEZ refines the category by offering three size and lumen tiers — 4‑inch/780LM, 6‑inch/1275LM, and 8‑inch/1900LM — all with the same shallow depth and selectable 5‑CCT chip. This means you can maintain consistent color temperature across different aperture sizes within a single space, mixing 4‑inch accent lights with 6‑inch general downlights without sacrificing visual harmony.

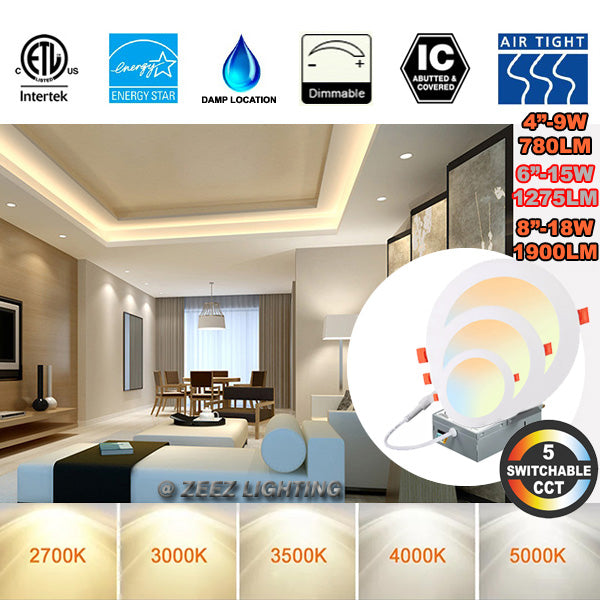

Technical Specifications – ZEEZ ETLPL5C-Option - ETL Listed & IC Rated: Certified for direct contact with insulation and damp‑location use, meeting strict North American safety standards. - 5‑CCT Field‑Selectable Switch: Toggle between 2700K, 3000K, 3500K, 4000K, and 5000K on the junction box before installation — no separate SKUs needed. - High‑Efficacy Lumen Packages: 9W (780LM), 15W (1275LM), and 18W (1900LM) options deliver 85+ lumens per watt, all dimmable with standard TRIAC/ELV dimmers. - Ultra‑Slim 1.5″ Profile: Fits into plenums as shallow as 2 inches, clearing joists, pipes, and insulation in retrofit and new construction alike. - Airtight & Damp‑Rated: Built‑in gasket seals the cutout to prevent airflow leakage, while damp‑location listing makes them safe for bathrooms, soffits, and covered exterior ceilings.

Real‑World Application: A Multi‑Use Basement Renovation with Drop Ceilings

A contractor recently addressed a 1970s basement that combined a home office, a media room, and a laundry area — all under a dated suspended ceiling. The existing fluorescent troffers were too deep, emitted a harsh glare, and consumed excessive energy. By switching to 6‑inch ZEEZ slim panel canless LED downlights, the team simply cut 6‑1/8″ holes in the acoustic tiles, wired each integrated junction box to the existing circuit, and popped the lights into place. The total depth consumed above the tiles was barely an inch, leaving the plumbing and ductwork untouched. During trim‑out, they set the office to 4000K for task lighting, the media zone to 2700K for a warm cinema feel, and the laundry area to 5000K for maximum clarity — all by sliding the CCT switch on identical fixtures. With smooth dimming down to 10% via a wall‑mounted LED dimmer, the space transformed without any structural modification. This single‑SKU solution slashed inventory costs and eliminated return trips for wrong color temperatures.

Verdict: Whether you’re cutting into fresh drywall, fitting an acoustic drop ceiling, or embracing the challenge of a steep sloped ceiling, canless LED recessed lights with an integrated junction box streamline installation, reduce plenum depth requirements, and deliver customizable light quality. The ZEEZ ETLPL5C-Option’s combination of ETL rating, IC‑safe design, 5‑CCT adjustability, and high‑lumen output makes it an all‑condition performer. Check out the ZEEZ Lighting ETLPL5C-Option here
